Positive Displacement Pump and Rotodynamic Pump
Product Description
The high quality G type positive displacement helical mono pump is designed for high pressure applications. This compact and easy to maintain pump is well-suited for a variety of mediums. It offers a stable flow and minimal pressure fluctuation, making it an ideal choice for many industrial applications. The high precision single helical screw design ensures maximum efficiency and reliability.
The pump features a stator composed of different types of elastic materials, including NBR rubber and Silicon rubber, which are used to line the metal structure.
The G type screw pump has the ability to pump fluids with high viscosity, as well as mediums containing hard suspended solid/fiber. This versatile pump is suitable for handling a wide range of fluids, ensuring efficient pumping operations.
The utilization of silicon rubber stator has made this pump a popular choice in various industries such as construction, foodstuff, and beverage. This versatile pump finds extensive application in these sectors.
There are several different motors that can be used with pumps, including gear box motors, electric magnetic speed adjustable motors, CVT motors, and frequency inverter motors. Each of these motor types offers unique benefits and can be selected based on the specific needs of the pump application. Regardless of the type of motor used, the goal is always to ensure smooth and efficient pump performance, which is crucial for a variety of industrial processes. By carefully selecting the right motor type for each pump application, businesses can achieve optimal results and improve their bottom line.
Technical Data
Performance data
Working Principle | Single Screw, Progressive Cavity |
Main applications | Oil, Slurry, food |
Driver | Electric motor |
Power Specs | 220V, 240V, 380V, 400V, 415V, 440V,etc 50hz/60hz |
Max.permissible fluid temperature | 120°C(248°F) |
Type of connection | Flange or Clamp |
Installation position | Horizontal |
Casing material | Cast iron, Stainless Steel |
Stator material | NBR, FKM(FPM), Food grade rubber |
Shaft seal type | Packing seal or Mechanical seal |
Maximum viscosity | 1×106C.S.T |
Maximum drive rating | 90KW(120HP) |
Maximum caliber | 250mm(10inch) |
Maximum discharge-side pressure | 0.6(6Bar) or 1.2MPa(12bar) |
Flow rate range | 0.8-150m3/h(3.5-660US.GPM) |
Application
Main purpose editing Voice
The IS horizontal clean water pump is specifically designed for the transportation of clean water and other liquids with similar physical and chemical properties. Its maximum operating temperature is 80℃.
The IR horizontal hot water pump has proven to be a reliable choice for various industries such as metallurgy, chemical, textile, papermaking, as well as hotels and restaurants. This pump is specifically designed for boiler hot water pressurized circulating transportation and for use in urban heating systems. The IR pump can handle temperatures of up to t≤120℃, making it ideal for various applications. Its versatility has made it a popular choice among professionals in different fields who require a reliable and efficient pump.

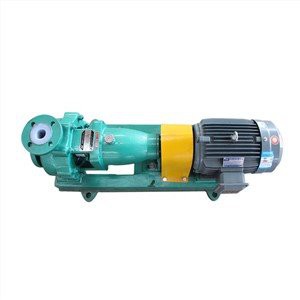

IH horizontal chemical pumps are specifically designed to handle the transportation of liquids that are free from solid particles, but are highly corrosive and possess a similar viscosity to that of water. These pumps are capable of functioning in temperatures ranging from -20℃ to +120℃, making them ideal for a wide range of applications within the chemical industry.
The ISW horizontal pipeline oil pump is designed to convey a variety of oil products and flammable liquids such as gasoline, diesel, and kerosene. It is capable of handling media with temperatures ranging from -20℃ to +120℃.
Certifications
Packaging & Shipping
A single set of pump will be packed in plywood cases with fixed timbers and plastic film inside.
Container loading will be witnessed in our factory to make sure packing correctly without damage
