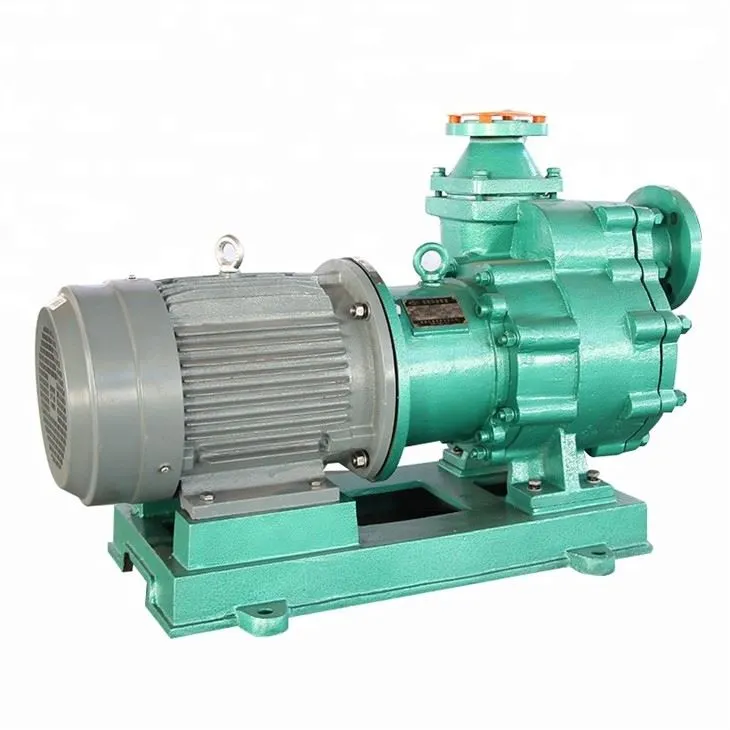

Stainless Steel Self Priming Pump
The centrifugal stainless steel pump with self-priming capability and anti-corrosion features has its shaft sealed using an advanced cantilevered mechanical seal.
This pump is designed with a compact structure which makes it easy to maintain. With its low energy consumption, self-priming ability, and strong corrosion resistance, it is a great choice for various applications. Plus, it can be equipped with a trolley for easy portability based on specific customer requirements.
This pump is capable of transporting corrosive liquids containing small soft particles or fibers (for direct connection up to 90°C/194°F and up to 105°C/221°F for those with a bearing bracket). Additionally, it can be used for transferring potable water, saltwater, and other similar liquids.
In various industries like synthetic fibre, petroleum, brewing, foodstuff and pharmaceuticals, stainless steel is extensively utilized due to its exceptional characteristics. The chemical and metallurgy sectors also make use of stainless steel in their operations.
Product Description
Working Principle | Centrifugal, Monoblock, Self-priming |
Main applications | Chemical |
Driver | Electric motor |
Power Specs | 380/415V 3phase; 220/240V 1phase; 50hz/60hz |
Max.permissible fluid temperature | 90°C(194°F)/105°C(221°F) |
Type of connection | Flange, Thread |
Installation position | Horizontal |
Casing/Inner parts material | Stainless steel/ Stainless steel |
Shaft seal type | Mechanical seal |
Maximum drive rating | 3KW(4HP) |
Maximum caliber | 50mm(2inch) |
Maximum discharge-side pressure | 0.3MPa(3bar) |
Maximum head | 28m(91.8ft) |
Flow rate range | 2.3-23.8m3/h(10.1-104.7US.GPM) |
Application
Certifications
Packaging & Shipping
