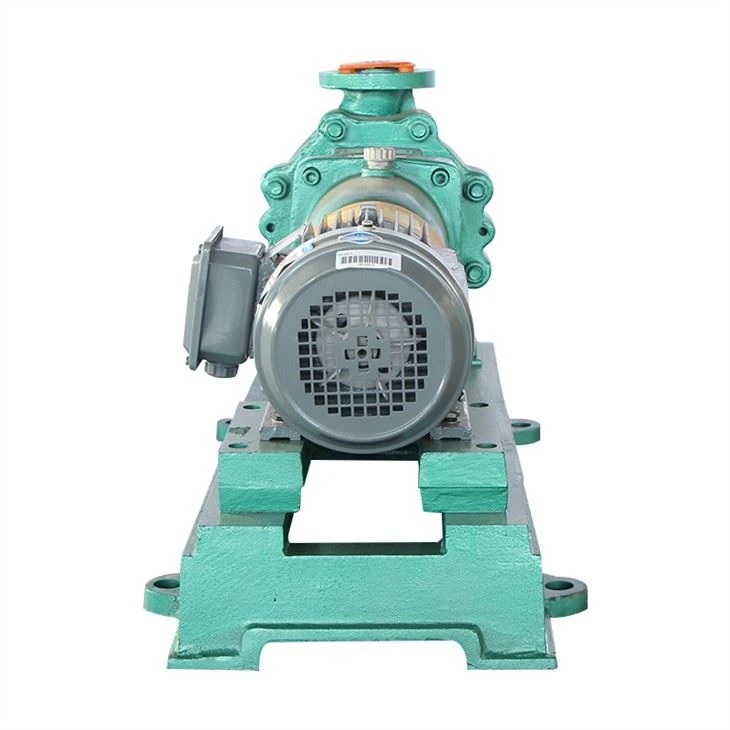

Horizontal Single Stage Centrifugal Pump

Product Description

Pump housing

The volute pump casing typically consists of a spiral liquid channel within its inner cavity. This particular arrangement serves the purpose of collecting the liquid that is expelled by the impeller and guiding it towards the diffuser tube, ultimately leading to the pump outlet. It is important to note that the pump casing is responsible for withstanding all the pressure generated during operation as well as bearing the heat load transferred by the liquid.

Impeller

There are three types of impellers used in pumps: closed, semi-open, and open. The impeller is the main working component responsible for pumping the liquid. Each type of impeller has its own structure. The closed impeller consists of blades, front cover, and rear cover. On the other hand, the semi-open impeller is made up of blades and a rear cover. The open impeller, however, only includes the blades without any front or rear cover. When it comes to efficiency, closed impellers have a higher efficiency compared to open impellers, which have a lower efficiency.

Seal ring

The sealing ring plays a vital role in preventing leakage, both internally and externally, in a pump. Made of durable materials, it is placed on the front and rear cover plates of the impeller and the pump casing. When it wears out, the sealing ring can be conveniently replaced. This ensures that the pump maintains its optimal performance for an extended period without any losses due to internal or external leakage. So, the sealing ring is a crucial component that ensures the pump operates smoothly and efficiently.

Shafts and bearings

At one end of the pump shaft, the impeller is affixed while a coupling is installed at the other end. Bearings can be chosen based on the pump's size, with options including rolling bearings and sliding bearings.

Shaft seal

Packing seals and mechanical seals are the two main types of shaft seals commonly used. In most cases, pumps are manufactured with provisions for both packing seals and mechanical seals to be installed.

Technical Data

Application

This product is ideal for industrial and urban water supply and drainage, as well as for water circulation pressurization, sprinkler irrigation, fire fighting water and other applications. It offers reliable and efficient performance that ensures water is effectively distributed where it is needed. Whether you're looking for a reliable water supply and drainage system for your business, or need a powerful pump for your irrigation needs, this product is the perfect choice. So if you're looking for a high-quality water pump that can meet all your needs, get in touch with us today!

Certifications

Packaging & Shipping

Our plywood cases with fixed timbers and plastic film inside are the perfect packaging solution for a single set of pump. With careful attention to detail, we ensure that your pump will arrive safely and securely, ready for use. Trust us to provide the highest quality packaging for your valuable equipment.

We will conduct container loading at our factory to ensure that the packing is done correctly and no damage is caused. The purpose of this activity is to maintain quality standards and safeguard the shipment. We will closely monitor the process to guarantee that the container is packed in a safe and secure manner. Our focus is to prevent any potential damage and provide our clients with an optimal shipping experience.
