Centrifugal Sump Pump

Product Description A sump pump is a mechanical device that harnesses the power of centrifugal force, generated by the rotation of its impeller, to amplify the energy of a mixture of solid and liquid substances. This ingenious machinery effectively converts electrical energy into the dynamic...

Send Inquiry

Product Introduction

Product Description

A sump pump is a mechanical device that harnesses the power of centrifugal force, generated by the rotation of its impeller, to amplify the energy of a mixture of solid and liquid substances. This ingenious machinery effectively converts electrical energy into the dynamic kinetic and potential energy of the media it handles. It finds wide-ranging applications in various industries such as sewage management, waste water treatment, mining operations, power plants, dredging activities, metallurgy processes, chemical manufacturing, construction material production, and petroleum extraction.

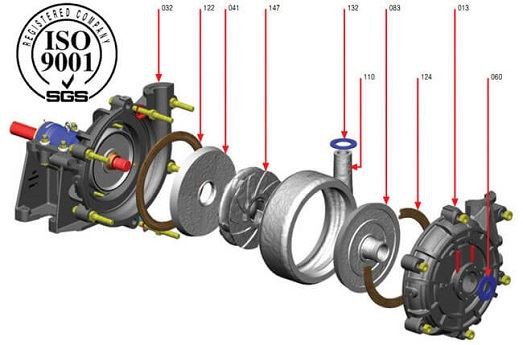

Main Design

Product Details

Performance Chart

：，。，。

Product Parameters

Model Name	Max Power (kw)	Capacity Q (m³/h)	Head (m)	Speed (r/min)	Max. Eff. (%)	NPSH (m)	Impeller Dia. (mm)
1.5/1B-H	15	12.6-28.8	6-68	1200-3800	40	2-4	152
2/1.5B-H	15	32.4-86.4	6-58	1200-3200	45	3.5-5.8	184
3/2C-H	30	39.6-86.4	12-64	1300-2700	55	4-6	214
4/3C-H	30	86.4-198	9-52	1000-2200	71	4-6	245
4/3D-H	60	86.4-198	9-52	1000-2200	71	4-6	245
6/4D-H	60	162-360	12-56	800-1550	65	5-8	365
6/4E-H	120	162-360	12-56	800-1550	65	5-8	365
8/6E-H	120	360-828	10-61	500-1140	72	2-9	510
8/6R-H	300	360-828	10-61	500-1140	72	2-9	510
10/8ST-H	560	612-1638	11-61	400-850	71	4-10	686
12/10T-H	560	936-1980	7-68	300-800	82	6	762
14/12ST-H	560	1260-2772	13-63	300-600	77	3-10	965
16/14TU-H	1200	1368-3060	11-63	250-550	79	4-10	1067
20/18TU-H	1200	2520-5400	13-57	200-400	85	5-10	1370
