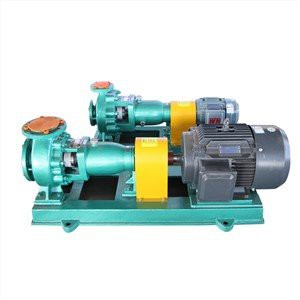

Horizontal End Suction Centrifugal Pump

The Direct/Close Coupled End Suction Pump is a highly efficient and reliable pump system that features a direct flange mounted motor, ensuring that shaft misalignment is eliminated. The flexible coupling used further enhances the system's safety. The pump units can be mounted both vertically and horizontally, with a back pull-out design that facilitates easy maintenance and inspection of the hydraulic end. These pumps come in various sizes ranging from 50 to 700mm (2 to 28 inches) for varying applications.
The Long Coupled End Suction Pumps offer a traditional yet effective design that can be mounted vertically or horizontally. They feature a robust construction that guarantees long-term service. The standard grease lubricated bearings can be replaced with oil lubrication in horizontal units to suit the needs of process industries. The modular bearing housing permits the use of various mechanical seals or soft packing arrangements. The shaft end bearings have been selected to maintain long bearing lives even when using belt drives.
Both pump systems have their unique features, and they are ideal for various applications based on specific requirements. No matter the choice, they guarantee efficient performance, and regular maintenance ensures optimal performance.

Product Specification

Advantages

Having direct access to both the pump and instrumentation is crucial for effective maintenance and operation. It allows for easy monitoring and adjustments, reducing the risk of damage or malfunction. In addition, direct access simplifies the troubleshooting process, making it quicker and more efficient. Whether it's for preventative maintenance or emergency repairs, direct access to the equipment ensures that any issues can be quickly identified and resolved. Overall, having direct access to the pump and instrumentation is essential for ensuring optimal performance and longevity of the equipment.

Maintenance in a clean environment

Commercially-available drive elements can be used

Robust construction for smooth operation

With the back pull-out design, maintenance and inspection of the hydraulic end become straightforward as the entire rotating unit can be effortlessly withdrawn. This feature enables a hassle-free process for keeping the equipment in top condition and facilitating any necessary repairs.

Our heavy-duty bearings are designed to provide superior L-10 bearing life, whether they are used in direct or belt-driven applications. We understand the importance of long-lasting bearings, and that's why we have engineered our products to deliver exceptional performance even in demanding conditions. With our reliable heavy-duty bearings, you can have peace of mind knowing that your equipment will run smoothly and efficiently. Whether you need them for industrial machinery, automotive applications, or any other heavy-duty requirements, our bearings are built to withstand the toughest challenges. Trust us for high-quality bearings that will exceed your expectations and keep your operations running smoothly.

Structure

Application

Typical Applications

Industrial effluent

Raw unscreened sewage

Viscous sludge

Return activated sludge

Drainage and storm water

Process waste

Sump cleanup

Bacterial floc

Live fish

Fruits and vegetables

TQA&QC

We have various documents available for our customers, including test reports, product certifications, and third-party certifications. These documents provide important information about the quality and compliance of our products. If you require any of these documents, please let us know, and we will provide you with the necessary information.

Packing, Storage, Handling and Transportation

The packaging of a pump involves placing it inside plywood cases with secured timbers and a protective plastic film. To ensure the safety of the pump during transportation and storage, this packaging method is employed.

In order to ensure that the packing is done correctly without causing any damage, we will have the opportunity to observe container loading in our factory. By witnessing this process firsthand, we can verify that the containers are being packed in a manner that meets our standards and avoids any potential damage. This close monitoring of the loading process is crucial to maintain the integrity of our goods during transportation. By rearranging the provided content, the emphasis is placed on the need for careful container loading to prevent any harm to the products.
